Palusznium Rush

Optimal mineral recovery using a genetic algorithm approach.

Motivation

Separation technologies are widely used to improve the purity of products. Although the physical separation units are different, their key shared feature is that they will recover a proportion of the “valuable” material and will simultaneously recover a proportion of the “waste” material. In general it is hoped that the proportion of valuable material will increase in the separated output compared to the input mixture.

Overview

This project is a C++ application designing an optimised separation circuit for Gormanium/Palusznium using a Genetic Algorithm, which can also handle both discrete & continuous circuit configurations, balance economic value and waste penalties, ensure robustness, flexibility, and tunability via configuration.

It features:

  • Simulator: Model a circuit and calculate its performance.
  • Genetic Algorithm: Algorithm implemented to find the optimal separation circuit.

We implement three flavours of genetic algorithms:

  • Discrete GA: evolves circuit topologies encoded as integer vectors.
  • Beta-Only GA: evolves continuous β-parameters for a fixed circuit topology using SBX crossover and Gaussian mutation.
  • Hybrid GA: co-evolves both discrete topology and continuous β in one run.

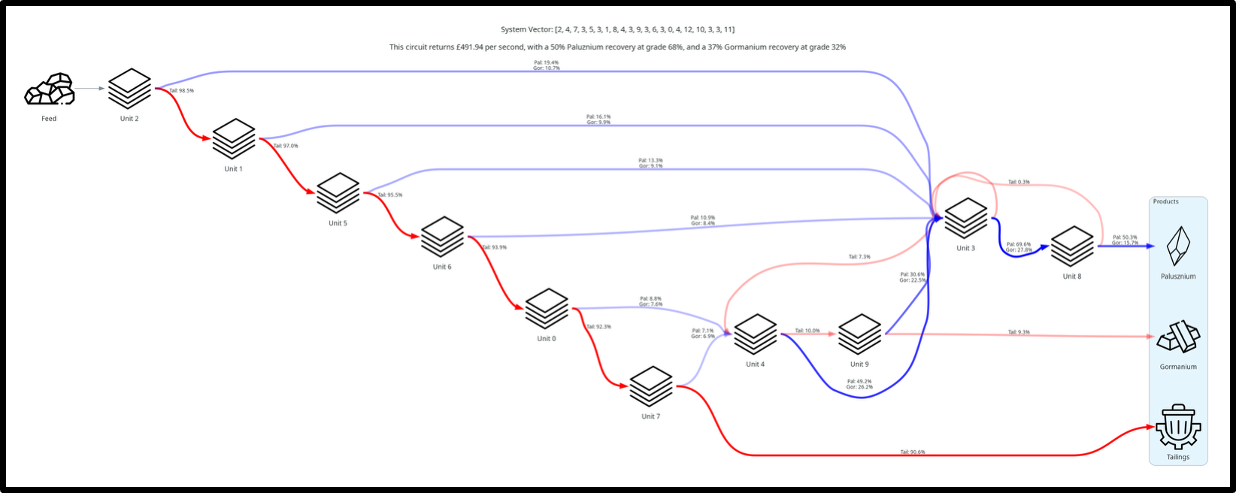

Here is the circuit with highest fitness value (for standard 10 unit design) produced by our algorithm:

Best Circuit with 10 units.

Standard Genetic Algorithm

1. Results with tournament selection:

2. Results with rank-based selection:

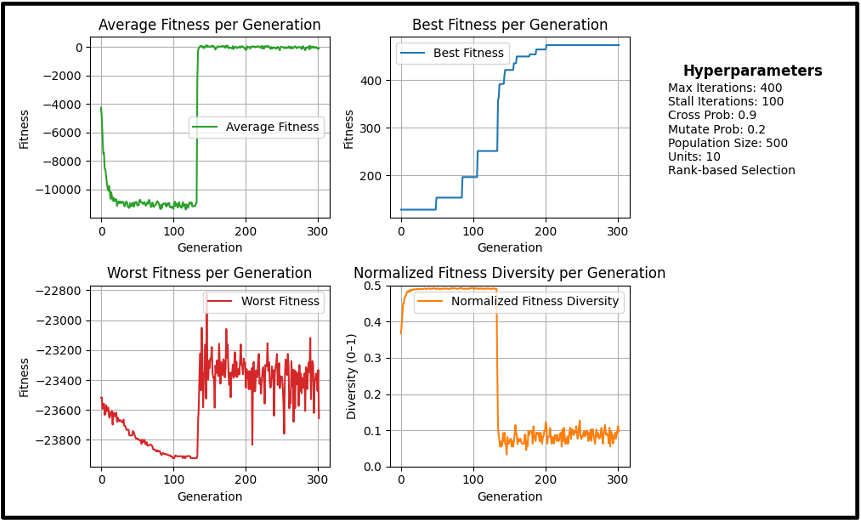

3. Resuls with hybrid selection methods:

Performance Notes

All experiments were carried out using a unit size of 10. Below is a summary of the different selection strategies tested and their outcomes.

1. Baseline: Non-Optimized Version

  • Method: Standard tournament selection with a fixed tournament size.
  • Results:
    • Achieves a consistent best fitness in the range of ~430–470.
    • Shows a drop in both population and fitness diversity.
    • Performance steadily improves and converges around the mid-400s.

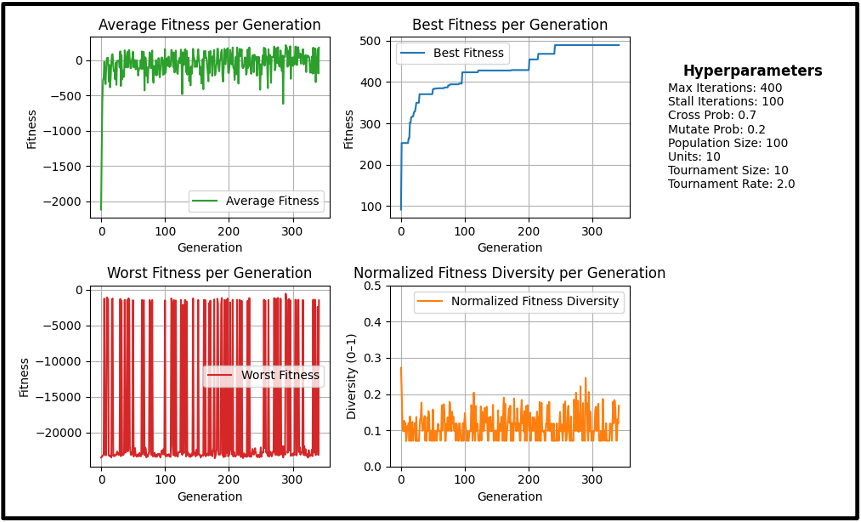

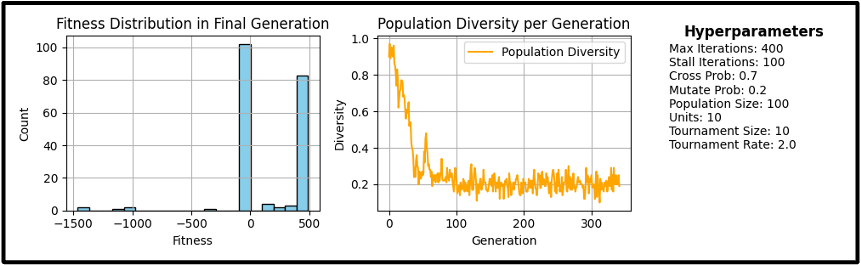

2. Optimized Version 1: Dynamic Tournament Size

  • Method: Tournament size scales dynamically from pop_size/50 (minimum) to pop_size/2 (maximum).
  • Results:
    • Produces less consistent results, with more oscillations in best performance.
    • Achieves best fitness values up to ~490.
    • Adjusting the tournament size scaling rate (e.g., factor of 2.0 to control the speed of change) does not meaningfully improve outcomes.

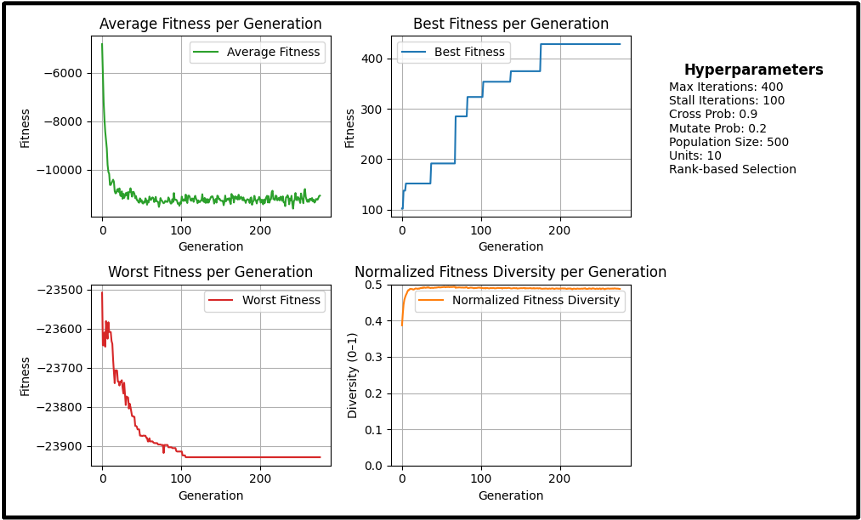

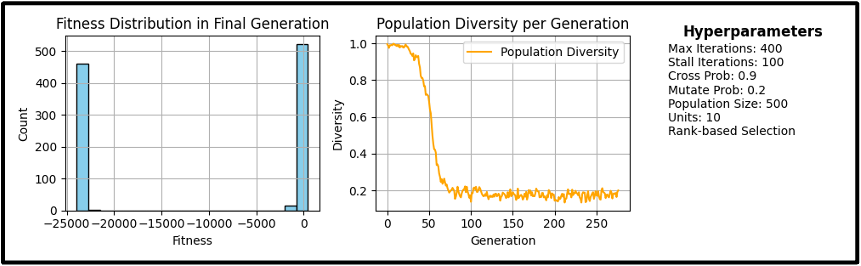

3. Optimized Version 2: Rank-Based Selection

  • Results:
    • Performs worse than tournament selection with smaller populations (e.g., 100).
    • Performs roughly on par with earlier versions at larger populations (e.g., 500).
    • Average population fitness drops significantly as generations progress.

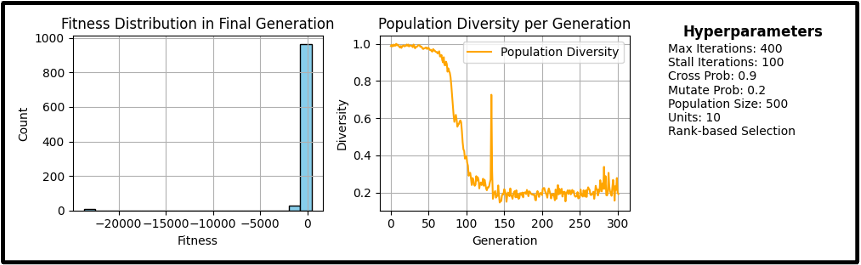

4. Hybrid: Rank-Based + Tournament Selection

  • Method: Start with rank-based selection to encourage diversity, then switch to standard tournament selection to push toward convergence.
  • Results:
    • Does not outperform the non-optimized version.
    • Gains from rank-based diversity fail to translate into better final results.

Age-Layered Genetic Algorithm (ALGP)

This method is designed to address premature convergence by encouraging exploration and maintaining population diversity. Below are the key ideas and implementation details:

Core Principles

  • Focuses on managing premature convergence to push the algorithm toward more optimal results.
  • New individuals are always assigned age 0.
  • Breeding restrictions: mating is limited to a selected layer and one layer below, promoting gradual information flow across layers.
  • Periodic injections occur every n-th age gap, introducing new diversity into the system.

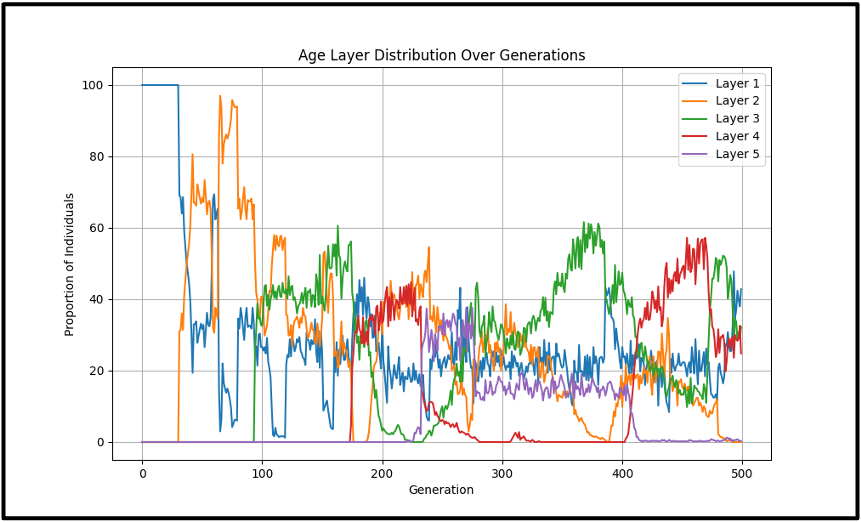

Age Layer Distribution Over Generations.

Observations

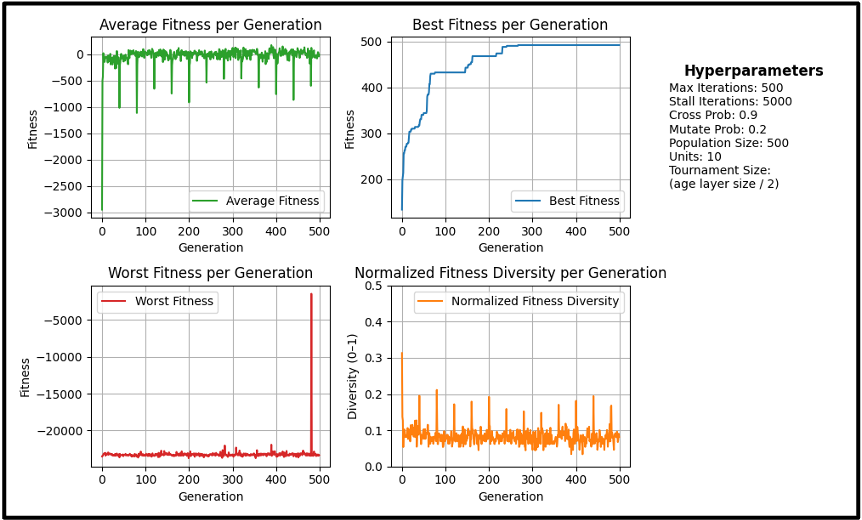

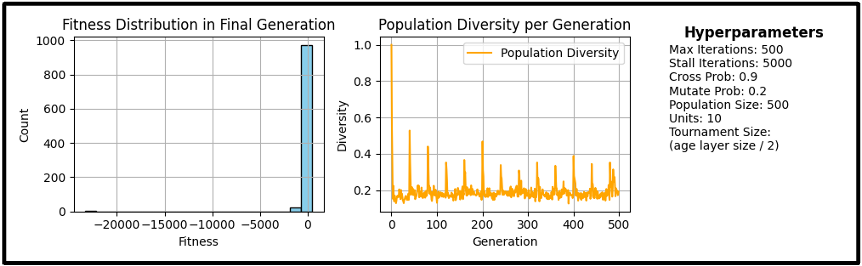

  • Tracking the best fitness values across multiple layers provides insight into how this method operates.
  • The first and youngest layer receives periodic injections. This helps preserve younger, lower-performing members with the expectation that they may “trickle down” into older layers, boosting overall diversity.
  • Larger population sizes and longer iteration counts were used successfully, since the layered structure reduces the risk of premature convergence and allows the algorithm to explore for longer.
